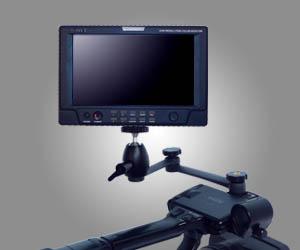

S-1080F(VGA) is a portable 8-inch high resolution LCD monitor, offering professional functions of waveform, focus assist, pixel-to-pixel center zoom-in, over exposure checking, internal colorbar, blue only, embedded SDI audio level display, customer editable UMD, 3 user defined picture settings, and so on. It has a strong and lightweight magnesium alloy shell, and easy to mount on top of camera to achieve professional functions.
S-1080F(VGA) monitor accepts 2 HD/SDSDI, 1 HDMI, 1 VGA, 2 Composite video, and has 1 SDI and 2 Composite video loop through output.
Input |
2 BNC |
2 ways HD/SD-SDI in |
2 BNC |
2 ways Composite in |
1 HDMI |
HDMI in |
1 D-SUB |
VGA in |
Output |
1 BNC |
HD/SD-SDI loop through out |
2 BNC |
2 ways Composite loop through out |
Signal format |
HDSDI (1.485Gbps) |
1080i 50 / 1080i 60 / 720p 50 / 720p 60 |
SDSDI (270Mbps) |
576i / 480i |
HDMI |
480i / 576i / 480p / 576p / 1080i 50 / 1080i 60 / 720p 50 / 720p 60 / 1080p 50 / 1080p 60 |
VGA |
1024*768-60Hz / 800*600-75Hz / 800*600-72Hz / 800*600-60Hz / 800*600-56Hz / 640*480-75Hz / 640*480-72Hz / 640*480-60Hz / 720*480 / 640*400 |
Composite |
PAL/NTSC/SECAM |
LCD panel |
Size |
8-inch |
Resolution |
800~RGB~480 |
Aspect ratio |
16:9 (4:3 adjustable) |
Viewing angle |
H/V: 120/90 |
Brightness |
400cd/m2 |
Contrast |
400:1 |
Working Voltage |
12V DC |
Rated power consumption |
17W |
Dimension |
225~152~65 mm |
Net Weight |
1080g |
Gross Weight |
3020g |
Working temperature |
0Ž`+40Ž |
Working humidity |
10%`90% |
Storage temperature |
-15Ž`+60Ž |
Storage humidity |
10%`90% |
S-1080F monitor has a 4-pin XLR 12V DC power connector, and also could be powered by different batteries:
Model |
Mount |
Recommended battery |
Voltage |
Original battery |
S-1080FA(VGA) |
A |
S-8080A/8110A/8160A |
14.4V |
Gold mount batteries |
S-1080FS(VGA) |
S |
S-8080S/8110S/8160S |
14.4V |
V-mount batteries |
S-1080FF(VGA) |
F |
S-8972/8970/8770 |
7.2V |
SONY L series NP-F770/970 |
S-1080FP(VGA) |
P |
S-8D62/8D54/8D28 |
7.2V |
Panasonic CGA D54S/D28S |
S-1080FJ(VGA) |
J |
S-8428 |
7.2V |
JVC BNV series V428U |
S-1080FC(VGA) |
C |
S-8945 |
