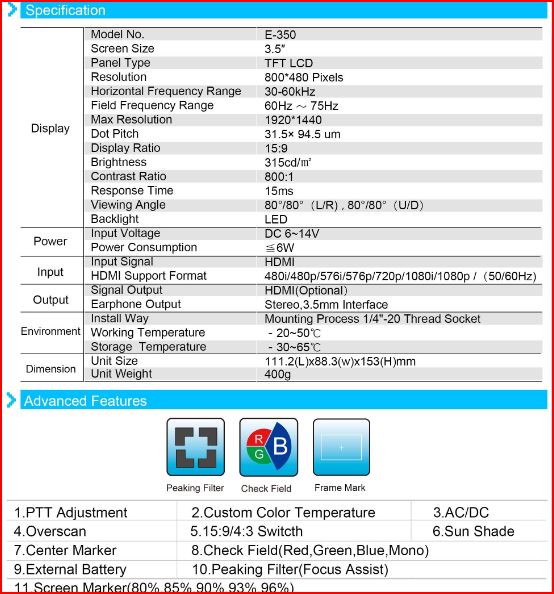

Description

3.5" EVF DSLR LCD Viewfinder For Camera  with HDMI In/Out

Model

E-350

Resolution

800X480 (up to 1920x1440)

Brightness

315cd/m©÷

Horizontal Frequency Range

30-60kHz

Field Frequency Range

60Hz ~ 75Hz

Dot Picth

31.5 x 94.5 um

Contrast

800:1

Response Time

15ms

Aspect Ratio

15:9

Backlight

LED

Inputs

HDMI

Outputs

HDMI;  3.5mm audio output

HDMI Support Mode

480i,480p,576i,576p,720p,1080i,1080p (50/60Hz)

Install Way

Mount Process 1/4"; Hot  shoe;  Magic Arm

Viewing Angle

80¡Æ/80¡Æ(L/R) 80¡Æ/80¡Æ(U/D)

Power Consumption

¡Â6W

Input Voltage

DC6V-14V

Work Temperature

-20~50¡ÆC

Store Temperature

-30~65¡ÆC

Unit Size

111.8L x 83W x 90.8H  mm

Unit Weight

400g
