Product Description

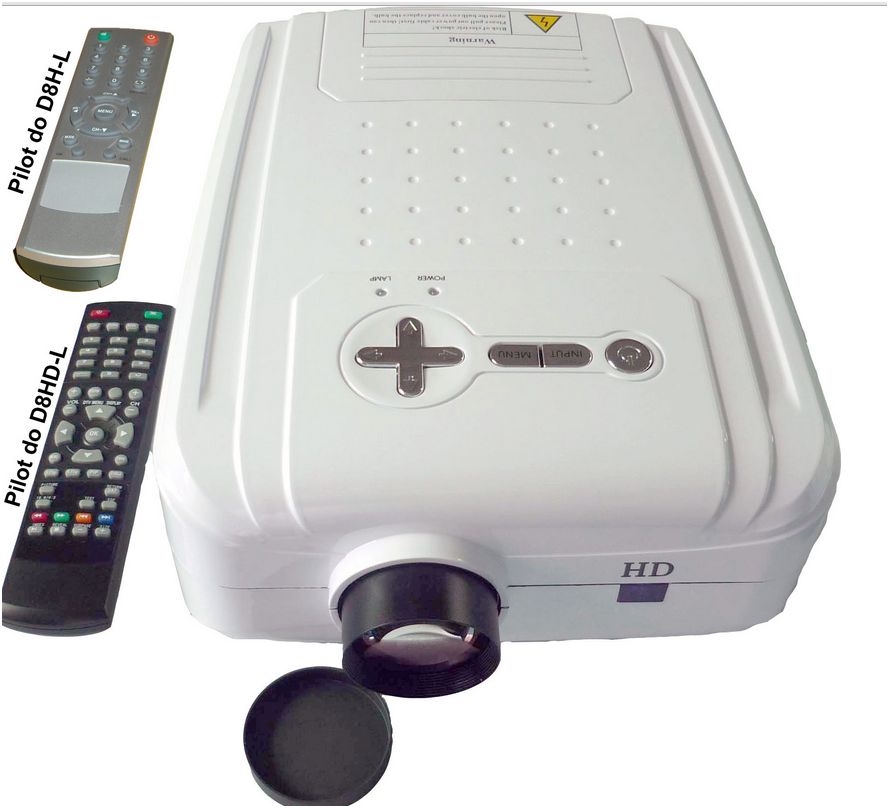

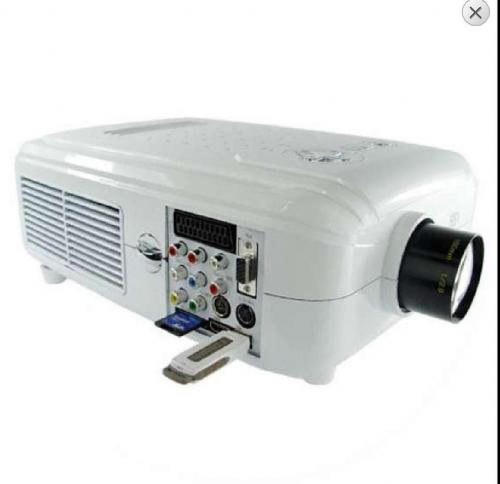

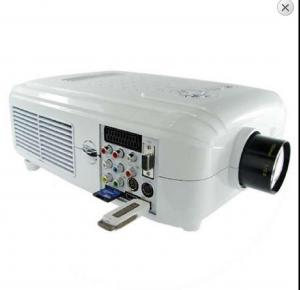

TITAN HD version(D8H, D8HD) that can support 1080i/720P/576P/480P/576i/480i signals, with such inputs as HDMI, YPrPb/YCbCr, SCART, AV, S-VIDEO, VGA, TV(analog), Especially, our D8HD have unique DVB-T function, also with USB, card reader input, which meet the need of popular digital TV, and can play USB, card reader media!


With a function of up/down & left/right picture rotation (horizontal/vertical flip) which could achieve Front/Rear/Ceiling/Rear Ceilingprojection.
Advanced functions: Built-in TV tuner, PIP(picture in picture), 3D, TeleText function, NICAM, ZOOM, Multi window, sound effect adjustment, etc.

Advanced image enhance technologies: ACM(Adaptive Color Management) & ACC(Adaptive Contrast & Color) & DCDI(Directional Correlational De-Interlace).


Support HDMI 1.1, 1.2, 1.3, compliant DVI 1.0, support SCART signal in.
Support USB1.0, 2.0
Support card reader MMC, MS, SD format

USB, card reader input support file: *. MPG, *. DAT, *. VOB, *. AVI,
And support video format MPEG-1/2, MP@ML, ISO MPEG4, Xvid, DivX(4.0, 5.0),
And support audio format: MP3, WAV, WMA(need licence).
And support photo format: JPEG


Under Digital TV, there are such as options as auto TV search or broadcast programs, program management, system setup, software update and software version information view etc.



Portable type, small size & light weight for various applications;
Multiple safety designs and easy bulb replacement for safe & convenient use.
"Green product", no radiation & pollution, low noise & power consumption;
Easy operation with an IR remote controller, equiped with 6 OSD languages(chinese/German/France/Spanish/Italian);

Technical Specifications:



Resolution: 640x480, supports 800x600 and 1, 024x768, 1280*1024
Brightness: 2000ANSI Lumens
Contrast: 500: 1
Projection System: 3.5 inch LCD
Compatibility: Support 1080i/720P/576P/480P/576i/480i signals
Projection methods: Front/Rear/Ceiling/Rear Ceiling
Input: HDMI, YPrPb/YCbCr, SCART, AV, S-VIDEO, VGA, TV(analog), (D8HD even with DVB-T, USB, SD card input)
Ration: 4: 3 & 16: 9 switch freely
Video Compatible: PAL/NTSC/SECAM

Image Enhance Technology: ACM(Adaptive Color Management) & ACC(Adaptive Contrast & Color) & DCDI(Directional Correlational De-Interlace).
Picture Modes: Support STANDARD/DYNAMIC/SOFT/PERSONAL 4 picture mode settings.
Major Functions: IR remote control, up/down & left/right picture rotation (horizontal/vertical flip), TeleText function, picture-in-picture (PIP)function, OSD screen display function, optical keystone adjustment, manual focus adjustment.
Safety features: Abnormal working temperature alarm, over-heat alarm & auto shutdown, fan error alarm & auto shutdown, power-off confirmation, 3 fans quiet ventilation system, intake anti-dust design, easy LCD cleaning design, easy bulb replacement design.

Menu language: Support 6 OSD menu languages
Lamp: 150w metal halide projection lamp, lamp life: About 6, 000 hours.
Image zoom: 16 grades electronic horizontal/vertical image zoom.
Sound effect: Bass & treble adjustment.
Sound modes: Support standard, news, music and personal 4 sound modes.
Noise reduction modes: Support off, weak, middle and strong 4 NR modes.
Auto Power-off: Automatic power off when no signal input
Speakers: 2W *2 Audio output.
Projecting image size: 23"-120"
Power Consumption: 200W
Power Supply: 210v-240v, 50/60HZ
Audio Noise: <32db
Dimensions: 258x323x120

Recommended Use	Home or Professional
Special Features	Built in digital TV with TELETEXT support Built in card reader SD/MMC/MMS USB Input Replacement bulbs of �20 Up to 8000 hours lamp life HD ready PIP (Picture in picture)
Lamp Life (hours)	6000 - 8000 (extremely high life)
Lumens	2000 (High Brightness)
Lamp Power	220W
Resolution	Native resolution is 800 x 480 for TV input Native resolution is 1024 x 768 for HDMI input Native resolution is 1024 x 768 for component
Video Standards	HDTV: 1080i / 720P / 576P / 480P / 576i / 480i
HDTV	Yes via HDMI or Component connections

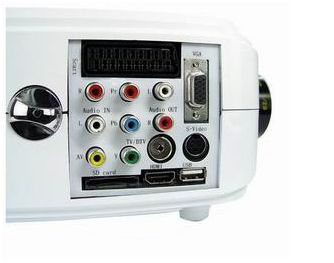

Inputs/outputs	HDMI Component YPbPr S-Video PC- VGA RF for Digital TV Card reader USB input RGB SCART (Connects TV Aerial, DVD, HD DVD, BLU RAY,, PC, Laptop, SKY HD or Normal SKY Digital, Virgin Media, MAC, X BOX, XBOX 360, PS2, PS3, Game Cube, Camcorder, Digital camera and many more) Audio output
Card Reader	Supports SD/MMC/MS
File support for USB/Card Reader	Video: MPEG4/MPEG3/WMA/WAV/ASF/Quick Time/AAC/CDDA Unofficially, we tested AVI and DIVX on these and it played 99% of our files with no problems. Picture: JPG/BMP/GIF
Screen Size	72 inches - 150 inches 1.83 meters - 4.7 meters 1830mm - 3810 mm
Diagonal Image Size (inch") Projector Distance (m) 4:3 mode 16:9 mode 72" 2.32m 2.10m 100" 3.14m 2.75m 125" 4.25m 3.65m 150" 4.70m 4.20m
Contrast	500:1
Noise	less than 28db
Loudspeaker	2 x 2W Speakers
Picture Rotations	Yes horizontal/vertical flip for ceiling mount
Image Enhancement Technology	ACM (Adaptive Colour Management) ACC (Adaptive Contrast Colour) DCDi (Directional Correlation De-Interlace).
Environment Modes	Day / Night / Standard
Projection methods	Front/ Rear/ Ceiling/ Rear Ceiling
TV System	Digital TV Built in with TELETEXT function PAL/SECAM Supports up to 225 channels
Auto power off	Auto power off when there's no signal
Languages	Supports 9 languages
Focus adjustment	Support Vertical Zoom/Image Zoom/Image Shrink.
Keystone correction	Yes
PIP	Supports picture in picture and easy audio swap
Safety features	Power off confirm / High temperature protection/ Optical Keystone adjustment/ Error warning on screen.
Security	Supports "password" protection to power on
Included accessories	Remote control Power cable RGB Cable HDMI cable
